Schema Docs


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ $schema No string No - -
+ version No enum (of string) No - -
+ scenario No enum (of string) No - The general scenario of this data file
- specimens No array No - -
- probes No array No - -
- wedges No array of object No - -
- acquisitionUnits No array of object No - -
- motionDevices No array of object No - -
- dataEncodings No array of object No - -
+ groups No array of object No - -

1. Property root > $schema


Type string
Required Yes
Restrictions
Min length 1

2. Property root > version


Type enum (of string)
Required Yes

Must be one of:

  • “3.1.0”

3. Property root > scenario


Type enum (of string)
Required Yes

Description: The general scenario of this data file

Must be one of:

  • “General Weld”
  • “General Mapping”

4. Property root > specimens


Type array
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
specimens items -

4.1. root > specimens > specimens items


Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1
item 2

4.1.1. Property root > specimens > specimens items > oneOf > item 0


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ plateGeometry No object No In #/definitions/plateGeometry Describes the geometry of the plate
- weldGeometry No object No In #/definitions/weldGeometry Describes the geometry of the weld

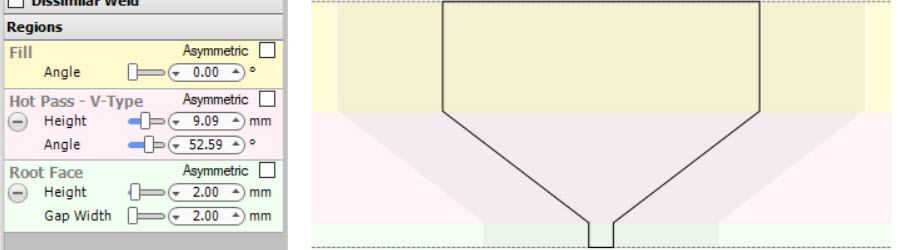

Diagram, desc
- customOverlay2D No object No In #/definitions/customOverlay2D dxf file and overlay position
4.1.1.1. Property root > specimens > specimens items > oneOf > item 0 > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
4.1.1.2. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry

Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/plateGeometry

Description: Describes the geometry of the plate

Property Pattern Type Deprecated Definition Title/Description
- length No number No - -
+ thickness No number No - -
- width No number No - -
+ material No object No In #/definitions/material -
+ surfaces No array No - -
4.1.1.2.1. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > length

Type number
Required No
Restrictions
Minimum ≥ 0.0
4.1.1.2.2. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > thickness

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
4.1.1.2.3. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > width

Type number
Required No
Restrictions
Minimum ≥ 0.0
4.1.1.2.4. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material

Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/material
Property Pattern Type Deprecated Definition Title/Description
+ name No string No - Material Name
+ longitudinalWave No object No - -
+ transversalVerticalWave No object No - -
- density No number No - Density of the material
4.1.1.2.4.1. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > name

Type string
Required Yes

Description: Material Name

Restrictions
Min length 1
4.1.1.2.4.2. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > longitudinalWave

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ nominalVelocity No number No - Nominal Velocity of the longitudinal wave
- attenuationCoefficient No number No - Attenuation Coefficient of the longitudinal wave
4.1.1.2.4.2.1. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > longitudinalWave > nominalVelocity

Type number
Required Yes

Description: Nominal Velocity of the longitudinal wave

Restrictions
Minimum ≥ 0.0
4.1.1.2.4.2.2. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > longitudinalWave > attenuationCoefficient

Type number
Required No

Description: Attenuation Coefficient of the longitudinal wave

Restrictions
Minimum ≥ 0.0
4.1.1.2.4.3. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > transversalVerticalWave

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ nominalVelocity No number No - Nominal Velocity of the Transversal Vertical wave
- attenuationCoefficient No number No - Attenuation Coefficient of the Transversal Vertical wave
4.1.1.2.4.3.1. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > transversalVerticalWave > nominalVelocity

Type number
Required Yes

Description: Nominal Velocity of the Transversal Vertical wave

Restrictions
Minimum ≥ 0.0
4.1.1.2.4.3.2. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > transversalVerticalWave > attenuationCoefficient

Type number
Required No

Description: Attenuation Coefficient of the Transversal Vertical wave

Restrictions
Minimum ≥ 0.0
4.1.1.2.4.4. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > material > density

Type number
Required No

Description: Density of the material

Restrictions
Minimum ≥ 0.0
4.1.1.2.5. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > surfaces

Type array
Required Yes
  Array restrictions
Min items 1
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
surfaces items -
4.1.1.2.5.1. root > specimens > specimens items > oneOf > item 0 > plateGeometry > surfaces > surfaces items

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
- id No integer No - -
- name No enum (of string) No - -
4.1.1.2.5.1.1. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > surfaces > surfaces items > id

Type integer
Required No
Restrictions
Minimum ≥ 0
4.1.1.2.5.1.2. Property root > specimens > specimens items > oneOf > item 0 > plateGeometry > surfaces > surfaces items > name

Type enum (of string)
Required No

Must be one of:

  • “Top”
  • “Bottom”
4.1.1.3. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/weldGeometry

Description: Describes the geometry of the weld Diagram, desc

Property Pattern Type Deprecated Definition Title/Description
+ weldAngle No number No - -
+ material No object No Same as material -
+ bevelShape No enum (of string) No - -
+ symmetry No enum (of string) No - -
- heatAffectedZoneWidth No number No - -
- offset No number No - -
- upperCap No object No - -
- lowerCap No object No - -
- fills No array of object No - -
- hotPass No object No - -
- land No object No - -
- root No object No - -
4.1.1.3.1. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > weldAngle

Type number
Required Yes
4.1.1.3.2. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > material

Type object
Required Yes
Additional properties [Not allowed]
Same definition as material
4.1.1.3.3. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > bevelShape

Type enum (of string)
Required Yes

Must be one of:

  • “U”
  • “V”
4.1.1.3.4. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > symmetry

Type enum (of string)
Required Yes

Must be one of:

  • “Symmetric”
  • “StraightLeft”
  • “StraightRight”
4.1.1.3.5. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > heatAffectedZoneWidth

Type number
Required No
4.1.1.3.6. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > offset

Type number
Required No
4.1.1.3.7. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > upperCap

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
- width No number No - -
+ height No number No - -
4.1.1.3.7.1. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > upperCap > width

Type number
Required No
4.1.1.3.7.2. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > upperCap > height

Type number
Required Yes
4.1.1.3.8. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > lowerCap

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
- width No number No - -
+ height No number No - -
4.1.1.3.8.1. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > lowerCap > width

Type number
Required No
4.1.1.3.8.2. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > lowerCap > height

Type number
Required Yes
4.1.1.3.9. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > fills

Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity False
Additional items False
Tuple validation See below
Each item of this array must be Description
fills items -
4.1.1.3.9.1. root > specimens > specimens items > oneOf > item 0 > weldGeometry > fills > fills items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ angle No number No - -
+ height No number No - -
4.1.1.3.9.1.1. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > fills > fills items > angle

Type number
Required Yes
4.1.1.3.9.1.2. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > fills > fills items > height

Type number
Required Yes
4.1.1.3.10. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > hotPass

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ angle No number No - -
+ height No number No - -
4.1.1.3.10.1. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > hotPass > angle

Type number
Required Yes
4.1.1.3.10.2. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > hotPass > height

Type number
Required Yes
4.1.1.3.11. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > land

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ height No number No - -
4.1.1.3.11.1. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > land > height

Type number
Required Yes
4.1.1.3.12. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > root

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ angle No number No - -
+ height No number No - -
4.1.1.3.12.1. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > root > angle

Type number
Required Yes
4.1.1.3.12.2. Property root > specimens > specimens items > oneOf > item 0 > weldGeometry > root > height

Type number
Required Yes
4.1.1.4. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/customOverlay2D

Description: dxf file and overlay position

Property Pattern Type Deprecated Definition Title/Description
+ filename No string No - -
+ format No string No - -
+ extension No string No - -
+ path No string No - -
- localScale No object No - -
- localTranslation No object No - -
- translation No object No - -
+ scale No number No - -
+ rotation No number No - -
+ width No number No - -
+ thickness No number No - -
4.1.1.4.1. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > filename

Type string
Required Yes
Restrictions
Min length 1
4.1.1.4.2. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > format

Type string
Required Yes
Restrictions
Min length 1
4.1.1.4.3. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > extension

Type string
Required Yes
Restrictions
Min length 1
4.1.1.4.4. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > path

Type string
Required Yes
Restrictions
Min length 1
4.1.1.4.5. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localScale

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ x No number No - -
+ y No number No - -
+ z No number No - -
4.1.1.4.5.1. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localScale > x

Type number
Required Yes
4.1.1.4.5.2. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localScale > y

Type number
Required Yes
4.1.1.4.5.3. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localScale > z

Type number
Required Yes
4.1.1.4.6. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localTranslation

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ x No number No - -
+ y No number No - -
+ z No number No - -
4.1.1.4.6.1. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localTranslation > x

Type number
Required Yes
4.1.1.4.6.2. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localTranslation > y

Type number
Required Yes
4.1.1.4.6.3. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > localTranslation > z

Type number
Required Yes
4.1.1.4.7. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > translation

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ x No number No - -
+ y No number No - -
+ z No number No - -
4.1.1.4.7.1. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > translation > x

Type number
Required Yes
4.1.1.4.7.2. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > translation > y

Type number
Required Yes
4.1.1.4.7.3. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > translation > z

Type number
Required Yes
4.1.1.4.8. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > scale

Type number
Required Yes
4.1.1.4.9. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > rotation

Type number
Required Yes
4.1.1.4.10. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > width

Type number
Required Yes
4.1.1.4.11. Property root > specimens > specimens items > oneOf > item 0 > customOverlay2D > thickness

Type number
Required Yes

4.1.2. Property root > specimens > specimens items > oneOf > item 1


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ pipeGeometry No object No In #/definitions/pipeGeometry Describes the geometry of the pipe
- weldGeometry No object No Same as weldGeometry Describes the geometry of the weld
- customOverlay2D No object No Same as customOverlay2D dxf file and overlay position
4.1.2.1. Property root > specimens > specimens items > oneOf > item 1 > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
4.1.2.2. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry

Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/pipeGeometry

Description: Describes the geometry of the pipe

Property Pattern Type Deprecated Definition Title/Description
- length No number No - -
- outerRadius No number No - -
+ thickness No number No - -
+ material No object No Same as material -
+ surfaces No array No - -
4.1.2.2.1. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry > length

Type number
Required No
Restrictions
Minimum ≥ 0.0
4.1.2.2.2. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry > outerRadius

Type number
Required No
Restrictions
Minimum ≥ 0.0
4.1.2.2.3. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry > thickness

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
4.1.2.2.4. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry > material

Type object
Required Yes
Additional properties [Not allowed]
Same definition as material
4.1.2.2.5. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry > surfaces

Type array
Required Yes
  Array restrictions
Min items 1
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
surfaces items -
4.1.2.2.5.1. root > specimens > specimens items > oneOf > item 1 > pipeGeometry > surfaces > surfaces items

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
- id No integer No - -
- name No enum (of string) No - -
4.1.2.2.5.1.1. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry > surfaces > surfaces items > id

Type integer
Required No
Restrictions
Minimum ≥ 0
4.1.2.2.5.1.2. Property root > specimens > specimens items > oneOf > item 1 > pipeGeometry > surfaces > surfaces items > name

Type enum (of string)
Required No

Must be one of:

  • “Inside”
  • “Outside”
4.1.2.3. Property root > specimens > specimens items > oneOf > item 1 > weldGeometry

Type object
Required No
Additional properties [Not allowed]
Same definition as weldGeometry

Description: Describes the geometry of the weld

4.1.2.4. Property root > specimens > specimens items > oneOf > item 1 > customOverlay2D

Type object
Required No
Additional properties [Not allowed]
Same definition as customOverlay2D

Description: dxf file and overlay position

4.1.3. Property root > specimens > specimens items > oneOf > item 2


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ barGeometry No object No In #/definitions/barGeometry Describes the geometry of the bar
4.1.3.1. Property root > specimens > specimens items > oneOf > item 2 > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
4.1.3.2. Property root > specimens > specimens items > oneOf > item 2 > barGeometry

Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/barGeometry

Description: Describes the geometry of the bar

Property Pattern Type Deprecated Definition Title/Description
+ length No number No - -
+ diameter No number No - -
+ material No object No Same as material -
+ surfaces No array No - -
4.1.3.2.1. Property root > specimens > specimens items > oneOf > item 2 > barGeometry > length

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
4.1.3.2.2. Property root > specimens > specimens items > oneOf > item 2 > barGeometry > diameter

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
4.1.3.2.3. Property root > specimens > specimens items > oneOf > item 2 > barGeometry > material

Type object
Required Yes
Additional properties [Not allowed]
Same definition as material
4.1.3.2.4. Property root > specimens > specimens items > oneOf > item 2 > barGeometry > surfaces

Type array
Required Yes
  Array restrictions
Min items 1
Max items 1
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
surfaces items -
4.1.3.2.4.1. root > specimens > specimens items > oneOf > item 2 > barGeometry > surfaces > surfaces items

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
- id No integer No - -
- name No enum (of string) No - -
4.1.3.2.4.1.1. Property root > specimens > specimens items > oneOf > item 2 > barGeometry > surfaces > surfaces items > id

Type integer
Required No
Restrictions
Minimum ≥ 0
4.1.3.2.4.1.2. Property root > specimens > specimens items > oneOf > item 2 > barGeometry > surfaces > surfaces items > name

Type enum (of string)
Required No

Must be one of:

  • “Outside”

5. Property root > probes


Type array
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
probes items -

5.1. root > probes > probes items


Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1

5.1.1. Property root > probes > probes items > oneOf > item 0


Type combining
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ model No string No - Probe Model Number
- serie No string No - Probe Serie
- serialNumber No string No - Probe Serial Number
- conventionalRound No object No In #/definitions/conventionalRound -
- conventionalRectangular No object No In #/definitions/conventionalRectangular -
- wedgeAssociation No object No - -
- fluidColumn No object No In #/definitions/fluidColumn -
All of(Requirement)
item 0
item 1
5.1.1.1. Property root > probes > probes items > oneOf > item 0 > allOf > item 0

Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1
5.1.1.1.1. Property root > probes > probes items > oneOf > item 0 > allOf > item 0 > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
5.1.1.1.1.1. The following properties are required
  • conventionalRound
5.1.1.1.2. Property root > probes > probes items > oneOf > item 0 > allOf > item 0 > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
5.1.1.1.2.1. The following properties are required
  • conventionalRectangular
5.1.1.2. Property root > probes > probes items > oneOf > item 0 > allOf > item 1

Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1
5.1.1.2.1. Property root > probes > probes items > oneOf > item 0 > allOf > item 1 > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
5.1.1.2.1.1. The following properties are required
  • wedgeAssociation
5.1.1.2.2. Property root > probes > probes items > oneOf > item 0 > allOf > item 1 > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
5.1.1.2.2.1. The following properties are required
  • fluidColumn
5.1.1.3. Property root > probes > probes items > oneOf > item 0 > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.1.4. Property root > probes > probes items > oneOf > item 0 > model

Type string
Required Yes

Description: Probe Model Number

Restrictions
Min length 1
5.1.1.5. Property root > probes > probes items > oneOf > item 0 > serie

Type string
Required No

Description: Probe Serie

Restrictions
Min length 1
5.1.1.6. Property root > probes > probes items > oneOf > item 0 > serialNumber

Type string
Required No

Description: Probe Serial Number

Restrictions
Min length 1
5.1.1.7. Property root > probes > probes items > oneOf > item 0 > conventionalRound

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/conventionalRound
Property Pattern Type Deprecated Definition Title/Description
+ centralFrequency No number No - -
+ diameter No number No - -
+ elements No array of object No - -
5.1.1.7.1. Property root > probes > probes items > oneOf > item 0 > conventionalRound > centralFrequency

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.1.7.2. Property root > probes > probes items > oneOf > item 0 > conventionalRound > diameter

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.1.7.3. Property root > probes > probes items > oneOf > item 0 > conventionalRound > elements

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items 1
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
elements items -
5.1.1.7.3.1. root > probes > probes items > oneOf > item 0 > conventionalRound > elements > elements items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
- pinId No integer No - -
+ acquisitionUnitId No integer No - -
+ connectorName No string No - -
5.1.1.7.3.1.1. Property root > probes > probes items > oneOf > item 0 > conventionalRound > elements > elements items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.1.7.3.1.2. Property root > probes > probes items > oneOf > item 0 > conventionalRound > elements > elements items > pinId

Type integer
Required No
Restrictions
Minimum ≥ 0
5.1.1.7.3.1.3. Property root > probes > probes items > oneOf > item 0 > conventionalRound > elements > elements items > acquisitionUnitId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.1.7.3.1.4. Property root > probes > probes items > oneOf > item 0 > conventionalRound > elements > elements items > connectorName

Type string
Required Yes
Restrictions
Min length 1
5.1.1.8. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/conventionalRectangular
Property Pattern Type Deprecated Definition Title/Description
+ centralFrequency No number No - -
+ length No number No - -
+ width No number No - -
+ elements No array of object No - -
5.1.1.8.1. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > centralFrequency

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.1.8.2. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > length

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.1.8.3. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > width

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.1.8.4. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > elements

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items 1
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
elements items -
5.1.1.8.4.1. root > probes > probes items > oneOf > item 0 > conventionalRectangular > elements > elements items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
- pinId No integer No - -
+ acquisitionUnitId No integer No - -
+ connectorName No string No - -
5.1.1.8.4.1.1. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > elements > elements items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.1.8.4.1.2. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > elements > elements items > pinId

Type integer
Required No
Restrictions
Minimum ≥ 0
5.1.1.8.4.1.3. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > elements > elements items > acquisitionUnitId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.1.8.4.1.4. Property root > probes > probes items > oneOf > item 0 > conventionalRectangular > elements > elements items > connectorName

Type string
Required Yes
Restrictions
Min length 1
5.1.1.9. Property root > probes > probes items > oneOf > item 0 > wedgeAssociation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ wedgeId No integer No - The wedge ID on which the probe is mounted
+ mountingLocationId No integer No - The mounting location ID on the wedge, on which the probe is mounted
5.1.1.9.1. Property root > probes > probes items > oneOf > item 0 > wedgeAssociation > wedgeId

Type integer
Required Yes

Description: The wedge ID on which the probe is mounted

Restrictions
Minimum ≥ 0
5.1.1.9.2. Property root > probes > probes items > oneOf > item 0 > wedgeAssociation > mountingLocationId

Type integer
Required Yes

Description: The mounting location ID on the wedge, on which the probe is mounted

Restrictions
Minimum ≥ 0
5.1.1.10. Property root > probes > probes items > oneOf > item 0 > fluidColumn

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/fluidColumn
Property Pattern Type Deprecated Definition Title/Description
+ name No string No - -
+ longitudinalVelocity No number No - -
- nominalHeight No number No - -
+ wedgeAngle No number No - -
- squintAngle No number No - -
- roofAngle No number No - -
+ primaryOffset No number No - -
+ secondaryOffset No number No - -
+ tertiaryOffset No number No - -
+ positioning No object No In #/definitions/positioning -
5.1.1.10.1. Property root > probes > probes items > oneOf > item 0 > fluidColumn > name

Type string
Required Yes
Restrictions
Min length 1
5.1.1.10.2. Property root > probes > probes items > oneOf > item 0 > fluidColumn > longitudinalVelocity

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.1.10.3. Property root > probes > probes items > oneOf > item 0 > fluidColumn > nominalHeight

Type number
Required No
Restrictions
Minimum ≥ 0.0
5.1.1.10.4. Property root > probes > probes items > oneOf > item 0 > fluidColumn > wedgeAngle

Type number
Required Yes
5.1.1.10.5. Property root > probes > probes items > oneOf > item 0 > fluidColumn > squintAngle

Type number
Required No
5.1.1.10.6. Property root > probes > probes items > oneOf > item 0 > fluidColumn > roofAngle

Type number
Required No
5.1.1.10.7. Property root > probes > probes items > oneOf > item 0 > fluidColumn > primaryOffset

Type number
Required Yes
5.1.1.10.8. Property root > probes > probes items > oneOf > item 0 > fluidColumn > secondaryOffset

Type number
Required Yes
5.1.1.10.9. Property root > probes > probes items > oneOf > item 0 > fluidColumn > tertiaryOffset

Type number
Required Yes
5.1.1.10.10. Property root > probes > probes items > oneOf > item 0 > fluidColumn > positioning

Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/positioning
Property Pattern Type Deprecated Definition Title/Description
+ specimenId No integer No - -
+ surfaceId No integer No - -
+ uCoordinateOffset No number No - -
+ vCoordinateOffset No number No - -
+ skewAngle No number No - -
5.1.1.10.10.1. Property root > probes > probes items > oneOf > item 0 > fluidColumn > positioning > specimenId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.1.10.10.2. Property root > probes > probes items > oneOf > item 0 > fluidColumn > positioning > surfaceId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.1.10.10.3. Property root > probes > probes items > oneOf > item 0 > fluidColumn > positioning > uCoordinateOffset

Type number
Required Yes
5.1.1.10.10.4. Property root > probes > probes items > oneOf > item 0 > fluidColumn > positioning > vCoordinateOffset

Type number
Required Yes
5.1.1.10.10.5. Property root > probes > probes items > oneOf > item 0 > fluidColumn > positioning > skewAngle

Type number
Required Yes

5.1.2. Property root > probes > probes items > oneOf > item 1


Type combining
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ model No string No - Probe Model Number
- serie No string No - Probe Serie
- serialNumber No string No - Probe Serial Number
+ phasedArrayLinear No object No In #/definitions/phasedArrayLinear -
- wedgeAssociation No object No - -
- fluidColumn No object No Same as fluidColumn -
One of(Option)
item 0
item 1
5.1.2.1. Property root > probes > probes items > oneOf > item 1 > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
5.1.2.1.1. The following properties are required
  • wedgeAssociation
5.1.2.2. Property root > probes > probes items > oneOf > item 1 > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
5.1.2.2.1. The following properties are required
  • fluidColumn
5.1.2.3. Property root > probes > probes items > oneOf > item 1 > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.2.4. Property root > probes > probes items > oneOf > item 1 > model

Type string
Required Yes

Description: Probe Model Number

Restrictions
Min length 1
5.1.2.5. Property root > probes > probes items > oneOf > item 1 > serie

Type string
Required No

Description: Probe Serie

Restrictions
Min length 1
5.1.2.6. Property root > probes > probes items > oneOf > item 1 > serialNumber

Type string
Required No

Description: Probe Serial Number

Restrictions
Min length 1
5.1.2.7. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear

Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/phasedArrayLinear
Property Pattern Type Deprecated Definition Title/Description
+ centralFrequency No number No - -
+ elements No array of object No - -
+ primaryAxis No object No - -
+ secondaryAxis No object No - -
5.1.2.7.1. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > centralFrequency

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.2.7.2. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
elements items -
5.1.2.7.2.1. root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ pinId No integer No - -
+ acquisitionUnitId No integer No - -
+ connectorName No string No - -
- primaryIndex No integer No - -
- secondaryIndex No integer No - -
- enabled No boolean No - -
5.1.2.7.2.1.1. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.2.7.2.1.2. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items > pinId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.2.7.2.1.3. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items > acquisitionUnitId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
5.1.2.7.2.1.4. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items > connectorName

Type string
Required Yes
Restrictions
Min length 1
5.1.2.7.2.1.5. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items > primaryIndex

Type integer
Required No
Restrictions
Minimum ≥ 0
5.1.2.7.2.1.6. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items > secondaryIndex

Type integer
Required No
Restrictions
Minimum ≥ 0
5.1.2.7.2.1.7. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > elements > elements items > enabled

Type boolean
Required No
5.1.2.7.3. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > primaryAxis

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ elementGap No number No - -
+ elementQuantity No number No - -
+ elementLength No number No - -
+ referencePoint No number No - -
- casingLength No number No - -
5.1.2.7.3.1. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > primaryAxis > elementGap

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.2.7.3.2. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > primaryAxis > elementQuantity

Type number
Required Yes
Restrictions
Minimum ≥ 1
5.1.2.7.3.3. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > primaryAxis > elementLength

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.2.7.3.4. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > primaryAxis > referencePoint

Type number
Required Yes
5.1.2.7.3.5. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > primaryAxis > casingLength

Type number
Required No
Restrictions
Minimum ≥ 0.0
5.1.2.7.4. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > secondaryAxis

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ elementGap No number No - -
+ elementQuantity No number No - -
+ elementLength No number No - -
+ referencePoint No number No - -
- casingLength No number No - -
5.1.2.7.4.1. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > secondaryAxis > elementGap

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.2.7.4.2. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > secondaryAxis > elementQuantity

Type number
Required Yes
Restrictions
Minimum ≥ 1
5.1.2.7.4.3. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > secondaryAxis > elementLength

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
5.1.2.7.4.4. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > secondaryAxis > referencePoint

Type number
Required Yes
5.1.2.7.4.5. Property root > probes > probes items > oneOf > item 1 > phasedArrayLinear > secondaryAxis > casingLength

Type number
Required No
Restrictions
Minimum ≥ 0.0
5.1.2.8. Property root > probes > probes items > oneOf > item 1 > wedgeAssociation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ wedgeId No integer No - The wedge ID on which the probe is mounted
+ mountingLocationId No integer No - The mounting location ID on the wedge, on which the probe is mounted
- orientation No enum (of string) No - Probe mounting orientation
5.1.2.8.1. Property root > probes > probes items > oneOf > item 1 > wedgeAssociation > wedgeId

Type integer
Required Yes

Description: The wedge ID on which the probe is mounted

Restrictions
Minimum ≥ 0
5.1.2.8.2. Property root > probes > probes items > oneOf > item 1 > wedgeAssociation > mountingLocationId

Type integer
Required Yes

Description: The mounting location ID on the wedge, on which the probe is mounted

Restrictions
Minimum ≥ 0
5.1.2.8.3. Property root > probes > probes items > oneOf > item 1 > wedgeAssociation > orientation

Type enum (of string)
Required No

Description: Probe mounting orientation

Must be one of:

  • “Normal”
  • “Reverse”
5.1.2.9. Property root > probes > probes items > oneOf > item 1 > fluidColumn

Type object
Required No
Additional properties [Not allowed]
Same definition as fluidColumn

6. Property root > wedges


Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
wedges items -

6.1. root > wedges > wedges items


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ model No string No - Wedge Model Number
- serie No string No - Wedge Serie
- serialNumber No string No - Wedge Serial Number
+ angleBeamWedge No object No In #/definitions/angleBeamWedge -
+ positioning No object No Same as positioning -

6.1.1. Property root > wedges > wedges items > id


Type integer
Required Yes
Restrictions
Minimum ≥ 0

6.1.2. Property root > wedges > wedges items > model


Type string
Required Yes

Description: Wedge Model Number

Restrictions
Min length 1

6.1.3. Property root > wedges > wedges items > serie


Type string
Required No

Description: Wedge Serie

Restrictions
Min length 1

6.1.4. Property root > wedges > wedges items > serialNumber


Type string
Required No

Description: Wedge Serial Number

Restrictions
Min length 1

6.1.5. Property root > wedges > wedges items > angleBeamWedge


Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/angleBeamWedge
Property Pattern Type Deprecated Definition Title/Description
+ width No number No - -
+ height No number No - -
+ length No number No - -
+ longitudinalVelocity No number No - -
+ mountingLocations No array of object No - -
- pocketDepth No number No - -
6.1.5.1. Property root > wedges > wedges items > angleBeamWedge > width

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
6.1.5.2. Property root > wedges > wedges items > angleBeamWedge > height

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
6.1.5.3. Property root > wedges > wedges items > angleBeamWedge > length

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
6.1.5.4. Property root > wedges > wedges items > angleBeamWedge > longitudinalVelocity

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
6.1.5.5. Property root > wedges > wedges items > angleBeamWedge > mountingLocations

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
mountingLocations items -
6.1.5.5.1. root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ wedgeAngle No number No - -
- squintAngle No number No - -
- roofAngle No number No - -
+ primaryOffset No number No - -
+ secondaryOffset No number No - -
+ tertiaryOffset No number No - -
6.1.5.5.1.1. Property root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
6.1.5.5.1.2. Property root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items > wedgeAngle

Type number
Required Yes
6.1.5.5.1.3. Property root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items > squintAngle

Type number
Required No
6.1.5.5.1.4. Property root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items > roofAngle

Type number
Required No
6.1.5.5.1.5. Property root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items > primaryOffset

Type number
Required Yes
6.1.5.5.1.6. Property root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items > secondaryOffset

Type number
Required Yes
6.1.5.5.1.7. Property root > wedges > wedges items > angleBeamWedge > mountingLocations > mountingLocations items > tertiaryOffset

Type number
Required Yes
6.1.5.6. Property root > wedges > wedges items > angleBeamWedge > pocketDepth

Type number
Required No

6.1.6. Property root > wedges > wedges items > positioning


Type object
Required Yes
Additional properties [Not allowed]
Same definition as positioning

7. Property root > acquisitionUnits


Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
acquisitionUnits items -

7.1. root > acquisitionUnits > acquisitionUnits items


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ platform No string No - Platform Name
+ model No string No - Platform Model
- serialNumber No string No - Platform Serial Number
- name No string No - Optional Name Attributed to the Unit
+ acquisitionRate No number No - Acquisition Rate

7.1.1. Property root > acquisitionUnits > acquisitionUnits items > id


Type integer
Required Yes
Restrictions
Minimum ≥ 0

7.1.2. Property root > acquisitionUnits > acquisitionUnits items > platform


Type string
Required Yes

Description: Platform Name

Restrictions
Min length 1

7.1.3. Property root > acquisitionUnits > acquisitionUnits items > model


Type string
Required Yes

Description: Platform Model

Restrictions
Min length 1

7.1.4. Property root > acquisitionUnits > acquisitionUnits items > serialNumber


Type string
Required No

Description: Platform Serial Number

Restrictions
Min length 1

7.1.5. Property root > acquisitionUnits > acquisitionUnits items > name


Type string
Required No

Description: Optional Name Attributed to the Unit

Restrictions
Min length 1

7.1.6. Property root > acquisitionUnits > acquisitionUnits items > acquisitionRate


Type number
Required Yes

Description: Acquisition Rate

Restrictions
Minimum ≥ 0.0

8. Property root > motionDevices


Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
motionDevices items -

8.1. root > motionDevices > motionDevices items


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
- name No string No - Name of the motion device
- encoder No object No - -

8.1.1. Property root > motionDevices > motionDevices items > id


Type integer
Required Yes
Restrictions
Minimum ≥ 0

8.1.2. Property root > motionDevices > motionDevices items > name


Type string
Required No

Description: Name of the motion device

Restrictions
Min length 1

8.1.3. Property root > motionDevices > motionDevices items > encoder


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
- serialNumber No string No - Motion Device Serial Number
+ mode No enum (of string) No - Encoder Pulse Mode
+ stepResolution No number No - Encoder Step Resolution (unit)
- preset No number No - Preset value et set on acquistion start
- acquisitionDirection No enum (of string) No - Aquire in one direction or both
8.1.3.1. Property root > motionDevices > motionDevices items > encoder > serialNumber

Type string
Required No

Description: Motion Device Serial Number

Restrictions
Min length 1
8.1.3.2. Property root > motionDevices > motionDevices items > encoder > mode

Type enum (of string)
Required Yes

Description: Encoder Pulse Mode

Must be one of:

  • “Quadrature”
  • “ClockDir”
  • “PulseUp”
  • “PulseDown”
8.1.3.3. Property root > motionDevices > motionDevices items > encoder > stepResolution

Type number
Required Yes

Description: Encoder Step Resolution (unit)

Restrictions
Minimum ≥ 0.0
8.1.3.4. Property root > motionDevices > motionDevices items > encoder > preset

Type number
Required No

Description: Preset value et set on acquistion start

Restrictions
Minimum ≥ 0.0
8.1.3.5. Property root > motionDevices > motionDevices items > encoder > acquisitionDirection

Type enum (of string)
Required No

Description: Aquire in one direction or both

Must be one of:

  • “Unidirectional”
  • “Bidirectional”

9. Property root > dataEncodings


Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
dataEncodings items -

9.1. root > dataEncodings > dataEncodings items


Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ discreteGrid No object No In #/definitions/discreteGrid -

9.1.1. Property root > dataEncodings > dataEncodings items > id


Type integer
Required Yes
Restrictions
Minimum ≥ 0

9.1.2. Property root > dataEncodings > dataEncodings items > discreteGrid


Type object
Required Yes
Additional properties [Not allowed]
Defined in #/definitions/discreteGrid
Property Pattern Type Deprecated Definition Title/Description
+ specimenId No integer No - -
+ surfaceId No integer No - -
+ scanPattern No enum (of string) No - -
- uCoordinateOrientation No enum (of string) No - -
+ dimensions No array No - -
9.1.2.1. Property root > dataEncodings > dataEncodings items > discreteGrid > specimenId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
9.1.2.2. Property root > dataEncodings > dataEncodings items > discreteGrid > surfaceId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
9.1.2.3. Property root > dataEncodings > dataEncodings items > discreteGrid > scanPattern

Type enum (of string)
Required Yes

Must be one of:

  • “OneLineScan”
  • “RasterScan”
9.1.2.4. Property root > dataEncodings > dataEncodings items > discreteGrid > uCoordinateOrientation

Type enum (of string)
Required No

Must be one of:

  • “ScanAround”
  • “ScanAlong”
  • “ScanWidth”
  • “ScanLength”
9.1.2.5. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions

Type array
Required Yes
  Array restrictions
Min items 1
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
dimensions item 0 -
dimensions item 1 -
9.1.2.5.1. root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ offset No number No - -
+ quantity No integer No - -
+ resolution No number No - -
- motionDeviceId No integer No - -
- name No string No - -
9.1.2.5.1.1. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “UCoordinate”
9.1.2.5.1.2. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 0 > offset

Type number
Required Yes
9.1.2.5.1.3. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
9.1.2.5.1.4. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
9.1.2.5.1.5. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 0 > motionDeviceId

Type integer
Required No
Restrictions
Minimum ≥ 0
9.1.2.5.1.6. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 0 > name

Type string
Required No
Restrictions
Min length 1
9.1.2.5.2. root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 1

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ offset No number No - -
+ quantity No integer No - -
+ resolution No number No - -
- motionDeviceId No integer No - -
- name No string No - -
9.1.2.5.2.1. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 1 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “VCoordinate”
9.1.2.5.2.2. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 1 > offset

Type number
Required Yes
9.1.2.5.2.3. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 1 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
9.1.2.5.2.4. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 1 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
9.1.2.5.2.5. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 1 > motionDeviceId

Type integer
Required No
Restrictions
Minimum ≥ 0
9.1.2.5.2.6. Property root > dataEncodings > dataEncodings items > discreteGrid > dimensions > dimensions item 1 > name

Type string
Required No
Restrictions
Min length 1

10. Property root > groups


Type array of object
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
groups items -

10.1. root > groups > groups items


Type combining
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
- name No string No - Group Name
- usage No string No - Additionnal information concerning the use of the group (for example: CouplingCheck
- ut No object No In #/definitions/ut -
- paut No object No In #/definitions/paut -
- fmc No object No In #/definitions/fmc -
- dataset No object No In #/definitions/dataset -
Any of(Option)
item 0
item 1
item 2
item 3
item 4
item 5
item 6

10.1.1. Property root > groups > groups items > anyOf > item 0


Type object
Required No
Additional properties [Any type: allowed]
10.1.1.1. The following properties are required
  • dataset

10.1.2. Property root > groups > groups items > anyOf > item 1


Type object
Required No
Additional properties [Any type: allowed]
10.1.2.1. The following properties are required
  • ut

10.1.3. Property root > groups > groups items > anyOf > item 2


Type object
Required No
Additional properties [Any type: allowed]
10.1.3.1. The following properties are required
  • paut

10.1.4. Property root > groups > groups items > anyOf > item 3


Type object
Required No
Additional properties [Any type: allowed]
10.1.4.1. The following properties are required
  • fmc

10.1.5. Property root > groups > groups items > anyOf > item 4


Type object
Required No
Additional properties [Any type: allowed]
10.1.5.1. The following properties are required
  • ut
  • dataset

10.1.6. Property root > groups > groups items > anyOf > item 5


Type object
Required No
Additional properties [Any type: allowed]
10.1.6.1. The following properties are required
  • paut
  • dataset

10.1.7. Property root > groups > groups items > anyOf > item 6


Type object
Required No
Additional properties [Any type: allowed]
10.1.7.1. The following properties are required
  • fmc
  • dataset

10.1.8. Property root > groups > groups items > id


Type integer
Required Yes
Restrictions
Minimum ≥ 0

10.1.9. Property root > groups > groups items > name


Type string
Required No

Description: Group Name

Restrictions
Min length 1

10.1.10. Property root > groups > groups items > usage


Type string
Required No

Description: Additionnal information concerning the use of the group (for example: CouplingCheck

Restrictions
Min length 1

10.1.11. Property root > groups > groups items > ut


Type combining
Required No
Additional properties [Not allowed]
Defined in #/definitions/ut
Property Pattern Type Deprecated Definition Title/Description
+ dataEncodingId No integer No - -
- pulseEcho No object No - -
- pitchCatch No object No - -
- tofd No object No - -
+ waveMode No enum (of string) No - -
+ velocity No number No - -
+ refractedAngle No number No - -
+ wedgeDelay No number No - -
+ ascanStart No number No - -
+ ascanLength No number No - -
- digitizingFrequency No number No - -
- tcg No object No In #/definitions/tcg -
- pulse No object No - -
- gates No array of object No In #/definitions/utGates -
+ rectification No enum (of string) No - -
- ascanSynchroMode No enum (of string) No - -
- ascanCompressionFactor No integer No - -
- gain No number No - The gain in dB
- ultrasoundMode No enum (of string) No - -
- highAmplitude No number No - -
- referenceAmplitude No number No - -
- referenceGain No number No - -
- digitalBandPassFilter No object No In #/definitions/digitalBandPassFilter -
- smoothingFilter No number No - -
- averagingFactor No integer No - -
- calibrationStates No array No In #/definitions/calibrationStates -
- recurrence No number No - -
- softwareProcess No object No - -
One of(Option)
item 0
item 1
item 2
10.1.11.1. Property root > groups > groups items > ut > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.11.1.1. The following properties are required
  • pulseEcho
10.1.11.2. Property root > groups > groups items > ut > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.11.2.1. The following properties are required
  • pitchCatch
10.1.11.3. Property root > groups > groups items > ut > oneOf > item 2

Type object
Required No
Additional properties [Any type: allowed]
10.1.11.3.1. The following properties are required
  • tofd
10.1.11.4. Property root > groups > groups items > ut > dataEncodingId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.11.5. Property root > groups > groups items > ut > pulseEcho

Type object
Required No
Additional properties [Any type: allowed]
10.1.11.6. Property root > groups > groups items > ut > pitchCatch

Type object
Required No
Additional properties [Any type: allowed]
10.1.11.7. Property root > groups > groups items > ut > tofd

Type object
Required No
Additional properties [Any type: allowed]
10.1.11.8. Property root > groups > groups items > ut > waveMode

Type enum (of string)
Required Yes

Must be one of:

  • “Longitudinal”
  • “TransversalVertical”
10.1.11.9. Property root > groups > groups items > ut > velocity

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.11.10. Property root > groups > groups items > ut > refractedAngle

Type number
Required Yes
10.1.11.11. Property root > groups > groups items > ut > wedgeDelay

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.11.12. Property root > groups > groups items > ut > ascanStart

Type number
Required Yes
10.1.11.13. Property root > groups > groups items > ut > ascanLength

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.11.14. Property root > groups > groups items > ut > digitizingFrequency

Type number
Required No
Restrictions
Minimum ≥ 0
10.1.11.15. Property root > groups > groups items > ut > tcg

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/tcg
Property Pattern Type Deprecated Definition Title/Description
+ enabled No boolean No - -
- synchroMode No enum (of string) No - -
+ points No array of object No - -
10.1.11.15.1. Property root > groups > groups items > ut > tcg > enabled

Type boolean
Required Yes
10.1.11.15.2. Property root > groups > groups items > ut > tcg > synchroMode

Type enum (of string)
Required No

Must be one of:

  • “Pulse”
  • “AscanSynchroRelative”
10.1.11.15.3. Property root > groups > groups items > ut > tcg > points

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
points items -
10.1.11.15.3.1. root > groups > groups items > ut > tcg > points > points items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ time No number No - -
+ gain No number No - -
10.1.11.15.3.1.1. Property root > groups > groups items > ut > tcg > points > points items > time

Type number
Required Yes
10.1.11.15.3.1.2. Property root > groups > groups items > ut > tcg > points > points items > gain

Type number
Required Yes
10.1.11.16. Property root > groups > groups items > ut > pulse

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ width No number No - -
+ voltage No number No - -
- polarity No enum (of string) No - -
- No object No - -
10.1.11.16.1. Property root > groups > groups items > ut > pulse > width

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.11.16.2. Property root > groups > groups items > ut > pulse > voltage

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.11.16.3. Property root > groups > groups items > ut > pulse > polarity

Type enum (of string)
Required No

Must be one of:

  • “Bipolar”
  • “UnipolarPositive”
  • “UnipolarNegative”
10.1.11.17. Property root > groups > groups items > ut > gates

Type array of object
Required No
Defined in #/definitions/utGates
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
gates items -
10.1.11.17.1. root > groups > groups items > ut > gates > gates items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
- name No string No - -
- geometry No enum (of string) No - -
- produceCscanData No boolean No - -
+ peakDetection No enum (of string) No - -
+ timeSelection No enum (of string) No - -
+ thresholdPolarity No enum (of string) No - -
+ synchronization No object No - -
+ start No number No - -
+ length No number No - -
+ threshold No number No - -
10.1.11.17.1.1. Property root > groups > groups items > ut > gates > gates items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.11.17.1.2. Property root > groups > groups items > ut > gates > gates items > name

Type string
Required No
Restrictions
Min length 1
10.1.11.17.1.3. Property root > groups > groups items > ut > gates > gates items > geometry

Type enum (of string)
Required No

Must be one of:

  • “SoundPath”
  • “TrueDepth”
10.1.11.17.1.4. Property root > groups > groups items > ut > gates > gates items > produceCscanData

Type boolean
Required No
10.1.11.17.1.5. Property root > groups > groups items > ut > gates > gates items > peakDetection

Type enum (of string)
Required Yes

Must be one of:

  • “First”
  • “Last”
  • “Maximum”
10.1.11.17.1.6. Property root > groups > groups items > ut > gates > gates items > timeSelection

Type enum (of string)
Required Yes

Must be one of:

  • “Peak”
  • “Crossing”
  • “Unselected”
10.1.11.17.1.7. Property root > groups > groups items > ut > gates > gates items > thresholdPolarity

Type enum (of string)
Required Yes

Must be one of:

  • “Absolute”
  • “Positive”
  • “Negative”
10.1.11.17.1.8. Property root > groups > groups items > ut > gates > gates items > synchronization

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ mode No enum (of string) No - -
- triggeringEvent No enum (of string) No - -
- gateId No integer No - -
10.1.11.17.1.8.1. Property root > groups > groups items > ut > gates > gates items > synchronization > mode

Type enum (of string)
Required Yes

Must be one of:

  • “Pulse”
  • “GateRelative”
10.1.11.17.1.8.2. Property root > groups > groups items > ut > gates > gates items > synchronization > triggeringEvent

Type enum (of string)
Required No

Must be one of:

  • “Peak”
  • “Crossing”
10.1.11.17.1.8.3. Property root > groups > groups items > ut > gates > gates items > synchronization > gateId

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.11.17.1.9. Property root > groups > groups items > ut > gates > gates items > start

Type number
Required Yes
10.1.11.17.1.10. Property root > groups > groups items > ut > gates > gates items > length

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.11.17.1.11. Property root > groups > groups items > ut > gates > gates items > threshold

Type number
Required Yes
10.1.11.18. Property root > groups > groups items > ut > rectification

Type enum (of string)
Required Yes

Must be one of:

  • “None”
  • “Positive”
  • “Negative”
  • “Full”
10.1.11.19. Property root > groups > groups items > ut > ascanSynchroMode

Type enum (of string)
Required No

Must be one of:

  • “Pulse”
  • “SynchroGateRelative”
10.1.11.20. Property root > groups > groups items > ut > ascanCompressionFactor

Type integer
Required No
Restrictions
Minimum ≥ 1
10.1.11.21. Property root > groups > groups items > ut > gain

Type number
Required No

Description: The gain in dB

10.1.11.22. Property root > groups > groups items > ut > ultrasoundMode

Type enum (of string)
Required No

Must be one of:

  • “TrueDepth”
  • “SoundPath”
  • “Time”
10.1.11.23. Property root > groups > groups items > ut > highAmplitude

Type number
Required No
Restrictions
Minimum ≥ 0
10.1.11.24. Property root > groups > groups items > ut > referenceAmplitude

Type number
Required No
10.1.11.25. Property root > groups > groups items > ut > referenceGain

Type number
Required No
10.1.11.26. Property root > groups > groups items > ut > digitalBandPassFilter

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/digitalBandPassFilter
Property Pattern Type Deprecated Definition Title/Description
+ filterType No enum (of string) No - -
+ highCutOffFrequency No number No - -
+ lowCutOffFrequency No number No - -
+ characteristic No enum (of string) No - -
10.1.11.26.1. Property root > groups > groups items > ut > digitalBandPassFilter > filterType

Type enum (of string)
Required Yes

Must be one of:

  • “None”
  • “LowPass”
  • “HighPass”
  • “BandPass”
10.1.11.26.2. Property root > groups > groups items > ut > digitalBandPassFilter > highCutOffFrequency

Type number
Required Yes
10.1.11.26.3. Property root > groups > groups items > ut > digitalBandPassFilter > lowCutOffFrequency

Type number
Required Yes
10.1.11.26.4. Property root > groups > groups items > ut > digitalBandPassFilter > characteristic

Type enum (of string)
Required Yes

Must be one of:

  • “None”
  • “TOFD”
10.1.11.27. Property root > groups > groups items > ut > smoothingFilter

Type number
Required No
10.1.11.28. Property root > groups > groups items > ut > averagingFactor

Type integer
Required No
Restrictions
Minimum ≥ 1
10.1.11.29. Property root > groups > groups items > ut > calibrationStates

Type array
Required No
Defined in #/definitions/calibrationStates
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
calibrationStates items -
10.1.11.29.1. root > groups > groups items > ut > calibrationStates > calibrationStates items

Type combining
Required No
Additional properties [Any type: allowed]
Any of(Option)
item 0
item 1
item 2
item 3
item 4
item 5
item 6
10.1.11.29.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ sensitivityCalibration No object No - -
10.1.11.29.1.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 0 > sensitivityCalibration

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ calibrated No boolean No - -
10.1.11.29.1.1.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 0 > sensitivityCalibration > calibrated

Type boolean
Required Yes
10.1.11.29.1.2. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 1

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ tcgCalibration No object No - -
10.1.11.29.1.2.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 1 > tcgCalibration

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ calibrated No boolean No - -
10.1.11.29.1.2.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 1 > tcgCalibration > calibrated

Type boolean
Required Yes
10.1.11.29.1.3. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 2

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ velocityCalibration No object No - -
10.1.11.29.1.3.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 2 > velocityCalibration

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ calibrated No boolean No - -
10.1.11.29.1.3.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 2 > velocityCalibration > calibrated

Type boolean
Required Yes
10.1.11.29.1.4. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 3

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ wedgeDelayCalibration No object No - -
10.1.11.29.1.4.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 3 > wedgeDelayCalibration

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ calibrated No boolean No - -
10.1.11.29.1.4.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 3 > wedgeDelayCalibration > calibrated

Type boolean
Required Yes
10.1.11.29.1.5. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 4

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ dacCalibration No object No - -
10.1.11.29.1.5.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 4 > dacCalibration

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ calibrated No boolean No - -
10.1.11.29.1.5.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 4 > dacCalibration > calibrated

Type boolean
Required Yes
10.1.11.29.1.6. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 5

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ dgsCalibration No object No - -
10.1.11.29.1.6.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 5 > dgsCalibration

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ calibrated No boolean No - -
10.1.11.29.1.6.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 5 > dgsCalibration > calibrated

Type boolean
Required Yes
10.1.11.29.1.7. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 6

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ tofdWedgeDelayCalibration No object No - -
10.1.11.29.1.7.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 6 > tofdWedgeDelayCalibration

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ calibrated No boolean No - -
10.1.11.29.1.7.1.1. Property root > groups > groups items > ut > calibrationStates > calibrationStates items > anyOf > item 6 > tofdWedgeDelayCalibration > calibrated

Type boolean
Required Yes
10.1.11.30. Property root > groups > groups items > ut > recurrence

Type number
Required No
Restrictions
Minimum ≥ 0.0
10.1.11.31. Property root > groups > groups items > ut > softwareProcess

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
- gain No number No - -
- gates No array of object No Same as gates -
- tcg No object No In #/definitions/softTcg -
- thickness No object No In #/definitions/thickness -
10.1.11.31.1. Property root > groups > groups items > ut > softwareProcess > gain

Type number
Required No
10.1.11.31.2. Property root > groups > groups items > ut > softwareProcess > gates

Type array of object
Required No
Same definition as gates
10.1.11.31.3. Property root > groups > groups items > ut > softwareProcess > tcg

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/softTcg
Property Pattern Type Deprecated Definition Title/Description
+ enabled No boolean No - -
+ points No array of object No - -
10.1.11.31.3.1. Property root > groups > groups items > ut > softwareProcess > tcg > enabled

Type boolean
Required Yes
10.1.11.31.3.2. Property root > groups > groups items > ut > softwareProcess > tcg > points

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
points items -
10.1.11.31.3.2.1. root > groups > groups items > ut > softwareProcess > tcg > points > points items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ time No number No - -
+ gain No number No - -
10.1.11.31.3.2.1.1. Property root > groups > groups items > ut > softwareProcess > tcg > points > points items > time

Type number
Required Yes
10.1.11.31.3.2.1.2. Property root > groups > groups items > ut > softwareProcess > tcg > points > points items > gain

Type number
Required Yes
10.1.11.31.4. Property root > groups > groups items > ut > softwareProcess > thickness

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/thickness
Property Pattern Type Deprecated Definition Title/Description
+ min No number No - -
+ max No number No - -
+ gates No array of object No - -
10.1.11.31.4.1. Property root > groups > groups items > ut > softwareProcess > thickness > min

Type number
Required Yes
10.1.11.31.4.2. Property root > groups > groups items > ut > softwareProcess > thickness > max

Type number
Required Yes
10.1.11.31.4.3. Property root > groups > groups items > ut > softwareProcess > thickness > gates

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
gates items -
10.1.11.31.4.3.1. root > groups > groups items > ut > softwareProcess > thickness > gates > gates items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ timeSelection No enum (of string) No - -
10.1.11.31.4.3.1.1. Property root > groups > groups items > ut > softwareProcess > thickness > gates > gates items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.11.31.4.3.1.2. Property root > groups > groups items > ut > softwareProcess > thickness > gates > gates items > timeSelection

Type enum (of string)
Required Yes

Must be one of:

  • “Peak”
  • “Crossing”

10.1.12. Property root > groups > groups items > paut


Type combining
Required No
Additional properties [Not allowed]
Defined in #/definitions/paut
Property Pattern Type Deprecated Definition Title/Description
+ dataEncodingId No integer No - -
- pulseEcho No Combination No - -
- pitchCatch No Combination No - -
+ waveMode No enum (of string) No - -
+ velocity No number No - -
+ focusing No object No - -
+ beams No array of object No In #/definitions/beams -
- pulse No object No - -
- gates No array of object No In #/definitions/pautGates -
+ rectification No enum (of string) No - -
- digitizingFrequency No number No - -
- ascanSynchroMode No enum (of string) No - -
- ascanCompressionFactor No integer No - -
- gain No number No - -
- wedgeDelay No number No - -
- ultrasoundMode No enum (of string) No - -
- highAmplitude No number No - -
- referenceAmplitude No number No - -
- referenceGain No number No - -
- digitalBandPassFilter No object No Same as digitalBandPassFilter -
- smoothingFilter No number No - -
- averagingFactor No integer No - -
- calibrationStates No array No Same as calibrationStates -
- softwareProcess No object No - -
- lawFile No object No - -
One of(Option)
item 0
item 1
10.1.12.1. Property root > groups > groups items > paut > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.1.1. The following properties are required
  • pulseEcho
10.1.12.2. Property root > groups > groups items > paut > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.2.1. The following properties are required
  • pitchCatch
10.1.12.3. Property root > groups > groups items > paut > dataEncodingId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4. Property root > groups > groups items > paut > pulseEcho

Type combining
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ probeId No integer No - -
- linearFormation No object No - -
- sectorialFormation No object No - -
- compoundFormation No object No - -
One of(Option)
item 0
item 1
item 2
item 3
10.1.12.4.1. Property root > groups > groups items > paut > pulseEcho > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.4.1.1. The following properties are required
  • linearFormation
10.1.12.4.2. Property root > groups > groups items > paut > pulseEcho > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.4.2.1. The following properties are required
  • sectorialFormation
10.1.12.4.3. Property root > groups > groups items > paut > pulseEcho > oneOf > item 2

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.4.3.1. The following properties are required
  • compoundFormation
10.1.12.4.4. Property root > groups > groups items > paut > pulseEcho > oneOf > item 3

Type combining
Required No
Additional properties [Any type: allowed]
10.1.12.4.4.1. Must not be

Type combining
Required No
Additional properties [Any type: allowed]
Any of(Option)
item 0
item 1
item 2
10.1.12.4.4.1.1. Property root > groups > groups items > paut > pulseEcho > oneOf > item 3 > not > anyOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.4.4.1.1.1. The following properties are required
  • linearFormation
10.1.12.4.4.1.2. Property root > groups > groups items > paut > pulseEcho > oneOf > item 3 > not > anyOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.4.4.1.2.1. The following properties are required
  • sectorialFormation
10.1.12.4.4.1.3. Property root > groups > groups items > paut > pulseEcho > oneOf > item 3 > not > anyOf > item 2

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.4.4.1.3.1. The following properties are required
  • compoundFormation
10.1.12.4.5. Property root > groups > groups items > paut > pulseEcho > probeId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.6. Property root > groups > groups items > paut > pulseEcho > linearFormation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ probeFirstElementId No integer No - -
+ probeLastElementId No integer No - -
+ elementStep No number No - -
+ elementAperture No integer No - -
+ beamRefractedAngle No number No - -
10.1.12.4.6.1. Property root > groups > groups items > paut > pulseEcho > linearFormation > probeFirstElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.6.2. Property root > groups > groups items > paut > pulseEcho > linearFormation > probeLastElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.6.3. Property root > groups > groups items > paut > pulseEcho > linearFormation > elementStep

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.4.6.4. Property root > groups > groups items > paut > pulseEcho > linearFormation > elementAperture

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.6.5. Property root > groups > groups items > paut > pulseEcho > linearFormation > beamRefractedAngle

Type number
Required Yes
10.1.12.4.7. Property root > groups > groups items > paut > pulseEcho > sectorialFormation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ probeFirstElementId No integer No - -
+ elementAperture No integer No - -
+ beamRefractedAngles No object No - -
10.1.12.4.7.1. Property root > groups > groups items > paut > pulseEcho > sectorialFormation > probeFirstElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.7.2. Property root > groups > groups items > paut > pulseEcho > sectorialFormation > elementAperture

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.7.3. Property root > groups > groups items > paut > pulseEcho > sectorialFormation > beamRefractedAngles

Type object
Required Yes
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ start No number No - -
+ stop No number No - -
+ step No number No - -
10.1.12.4.7.3.1. Property root > groups > groups items > paut > pulseEcho > sectorialFormation > beamRefractedAngles > start

Type number
Required Yes
10.1.12.4.7.3.2. Property root > groups > groups items > paut > pulseEcho > sectorialFormation > beamRefractedAngles > stop

Type number
Required Yes
10.1.12.4.7.3.3. Property root > groups > groups items > paut > pulseEcho > sectorialFormation > beamRefractedAngles > step

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.4.8. Property root > groups > groups items > paut > pulseEcho > compoundFormation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ probeFirstElementId No integer No - -
+ probeLastElementId No integer No - -
+ elementAperture No integer No - -
+ beamRefractedAngles No object No - -
10.1.12.4.8.1. Property root > groups > groups items > paut > pulseEcho > compoundFormation > probeFirstElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.8.2. Property root > groups > groups items > paut > pulseEcho > compoundFormation > probeLastElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.8.3. Property root > groups > groups items > paut > pulseEcho > compoundFormation > elementAperture

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.4.8.4. Property root > groups > groups items > paut > pulseEcho > compoundFormation > beamRefractedAngles

Type object
Required Yes
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ start No number No - -
+ stop No number No - -
+ step No number No - -
10.1.12.4.8.4.1. Property root > groups > groups items > paut > pulseEcho > compoundFormation > beamRefractedAngles > start

Type number
Required Yes
10.1.12.4.8.4.2. Property root > groups > groups items > paut > pulseEcho > compoundFormation > beamRefractedAngles > stop

Type number
Required Yes
10.1.12.4.8.4.3. Property root > groups > groups items > paut > pulseEcho > compoundFormation > beamRefractedAngles > step

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.5. Property root > groups > groups items > paut > pitchCatch

Type combining
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ pulserProbeId No integer No - -
+ receiverProbeId No integer No - -
- linearFormation No object No - -
- sectorialFormation No object No - -
- compoundFormation No object No - -
One of(Option)
item 0
item 1
item 2
item 3
10.1.12.5.1. Property root > groups > groups items > paut > pitchCatch > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.5.1.1. The following properties are required
  • linearFormation
10.1.12.5.2. Property root > groups > groups items > paut > pitchCatch > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.5.2.1. The following properties are required
  • sectorialFormation
10.1.12.5.3. Property root > groups > groups items > paut > pitchCatch > oneOf > item 2

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.5.3.1. The following properties are required
  • compoundFormation
10.1.12.5.4. Property root > groups > groups items > paut > pitchCatch > oneOf > item 3

Type combining
Required No
Additional properties [Any type: allowed]
10.1.12.5.4.1. Must not be

Type combining
Required No
Additional properties [Any type: allowed]
Any of(Option)
item 0
item 1
item 2
10.1.12.5.4.1.1. Property root > groups > groups items > paut > pitchCatch > oneOf > item 3 > not > anyOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.5.4.1.1.1. The following properties are required
  • linearFormation
10.1.12.5.4.1.2. Property root > groups > groups items > paut > pitchCatch > oneOf > item 3 > not > anyOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.5.4.1.2.1. The following properties are required
  • sectorialFormation
10.1.12.5.4.1.3. Property root > groups > groups items > paut > pitchCatch > oneOf > item 3 > not > anyOf > item 2

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.5.4.1.3.1. The following properties are required
  • compoundFormation
10.1.12.5.5. Property root > groups > groups items > paut > pitchCatch > pulserProbeId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.6. Property root > groups > groups items > paut > pitchCatch > receiverProbeId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.7. Property root > groups > groups items > paut > pitchCatch > linearFormation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ probeFirstElementId No integer No - -
+ probeLastElementId No integer No - -
+ elementStep No number No - -
+ elementAperture No integer No - -
+ beamRefractedAngle No number No - -
10.1.12.5.7.1. Property root > groups > groups items > paut > pitchCatch > linearFormation > probeFirstElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.7.2. Property root > groups > groups items > paut > pitchCatch > linearFormation > probeLastElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.7.3. Property root > groups > groups items > paut > pitchCatch > linearFormation > elementStep

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.5.7.4. Property root > groups > groups items > paut > pitchCatch > linearFormation > elementAperture

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.7.5. Property root > groups > groups items > paut > pitchCatch > linearFormation > beamRefractedAngle

Type number
Required Yes
10.1.12.5.8. Property root > groups > groups items > paut > pitchCatch > sectorialFormation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ probeFirstElementId No integer No - -
+ elementAperture No integer No - -
+ beamRefractedAngles No object No - -
10.1.12.5.8.1. Property root > groups > groups items > paut > pitchCatch > sectorialFormation > probeFirstElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.8.2. Property root > groups > groups items > paut > pitchCatch > sectorialFormation > elementAperture

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.8.3. Property root > groups > groups items > paut > pitchCatch > sectorialFormation > beamRefractedAngles

Type object
Required Yes
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ start No number No - -
+ stop No number No - -
+ step No number No - -
10.1.12.5.8.3.1. Property root > groups > groups items > paut > pitchCatch > sectorialFormation > beamRefractedAngles > start

Type number
Required Yes
10.1.12.5.8.3.2. Property root > groups > groups items > paut > pitchCatch > sectorialFormation > beamRefractedAngles > stop

Type number
Required Yes
10.1.12.5.8.3.3. Property root > groups > groups items > paut > pitchCatch > sectorialFormation > beamRefractedAngles > step

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.5.9. Property root > groups > groups items > paut > pitchCatch > compoundFormation

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ probeFirstElementId No integer No - -
+ probeLastElementId No integer No - -
+ elementAperture No integer No - -
+ beamRefractedAngles No object No - -
10.1.12.5.9.1. Property root > groups > groups items > paut > pitchCatch > compoundFormation > probeFirstElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.9.2. Property root > groups > groups items > paut > pitchCatch > compoundFormation > probeLastElementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.9.3. Property root > groups > groups items > paut > pitchCatch > compoundFormation > elementAperture

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.5.9.4. Property root > groups > groups items > paut > pitchCatch > compoundFormation > beamRefractedAngles

Type object
Required Yes
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ start No number No - -
+ stop No number No - -
+ step No number No - -
10.1.12.5.9.4.1. Property root > groups > groups items > paut > pitchCatch > compoundFormation > beamRefractedAngles > start

Type number
Required Yes
10.1.12.5.9.4.2. Property root > groups > groups items > paut > pitchCatch > compoundFormation > beamRefractedAngles > stop

Type number
Required Yes
10.1.12.5.9.4.3. Property root > groups > groups items > paut > pitchCatch > compoundFormation > beamRefractedAngles > step

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.6. Property root > groups > groups items > paut > waveMode

Type enum (of string)
Required Yes

Must be one of:

  • “Longitudinal”
  • “TransversalVertical”
10.1.12.7. Property root > groups > groups items > paut > velocity

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.8. Property root > groups > groups items > paut > focusing

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ mode No enum (of string) No - -
- distance No number No - -
- angle No number No - -
10.1.12.8.1. Property root > groups > groups items > paut > focusing > mode

Type enum (of string)
Required Yes

Must be one of:

  • “TrueDepth”
  • “HalfPath”
  • “Unfocused”
  • “Projection”
10.1.12.8.2. Property root > groups > groups items > paut > focusing > distance

Type number
Required No
Restrictions
Minimum ≥ 0
10.1.12.8.3. Property root > groups > groups items > paut > focusing > angle

Type number
Required No
10.1.12.9. Property root > groups > groups items > paut > beams

Type array of object
Required Yes
Defined in #/definitions/beams
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
beams items -
10.1.12.9.1. root > groups > groups items > paut > beams > beams items

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ skewAngle No number No - -
+ refractedAngle No number No - -
+ beamDelay No number No - -
+ ascanStart No number No - -
+ ascanLength No number No - -
- gainOffset No number No - -
- recurrence No number No - -
- sumGainMode No enum (of string) No - -
- sumGain No number No - -
- pulsers No array of object No - -
- receivers No array of object No - -
- tcg No object No Same as tcg -
10.1.12.9.1.1. Property root > groups > groups items > paut > beams > beams items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.9.1.2. Property root > groups > groups items > paut > beams > beams items > skewAngle

Type number
Required Yes
10.1.12.9.1.3. Property root > groups > groups items > paut > beams > beams items > refractedAngle

Type number
Required Yes
10.1.12.9.1.4. Property root > groups > groups items > paut > beams > beams items > beamDelay

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.9.1.5. Property root > groups > groups items > paut > beams > beams items > ascanStart

Type number
Required Yes
10.1.12.9.1.6. Property root > groups > groups items > paut > beams > beams items > ascanLength

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.9.1.7. Property root > groups > groups items > paut > beams > beams items > gainOffset

Type number
Required No
10.1.12.9.1.8. Property root > groups > groups items > paut > beams > beams items > recurrence

Type number
Required No
Restrictions
Minimum ≥ 0.0
10.1.12.9.1.9. Property root > groups > groups items > paut > beams > beams items > sumGainMode

Type enum (of string)
Required No

Must be one of:

  • “Manual”
  • “Automatic”
10.1.12.9.1.10. Property root > groups > groups items > paut > beams > beams items > sumGain

Type number
Required No
10.1.12.9.1.11. Property root > groups > groups items > paut > beams > beams items > pulsers

Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
pulsers items -
10.1.12.9.1.11.1. root > groups > groups items > paut > beams > beams items > pulsers > pulsers items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ elementId No integer No - -
+ delay No number No - -
10.1.12.9.1.11.1.1. Property root > groups > groups items > paut > beams > beams items > pulsers > pulsers items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.9.1.11.1.2. Property root > groups > groups items > paut > beams > beams items > pulsers > pulsers items > elementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.9.1.11.1.3. Property root > groups > groups items > paut > beams > beams items > pulsers > pulsers items > delay

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.9.1.12. Property root > groups > groups items > paut > beams > beams items > receivers

Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
receivers items -
10.1.12.9.1.12.1. root > groups > groups items > paut > beams > beams items > receivers > receivers items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ elementId No integer No - -
+ delay No number No - -
10.1.12.9.1.12.1.1. Property root > groups > groups items > paut > beams > beams items > receivers > receivers items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.9.1.12.1.2. Property root > groups > groups items > paut > beams > beams items > receivers > receivers items > elementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.9.1.12.1.3. Property root > groups > groups items > paut > beams > beams items > receivers > receivers items > delay

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.9.1.13. Property root > groups > groups items > paut > beams > beams items > tcg

Type object
Required No
Additional properties [Not allowed]
Same definition as tcg
10.1.12.10. Property root > groups > groups items > paut > pulse

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ width No number No - -
+ voltage No number No - -
- polarity No enum (of string) No - -
- No object No - -
10.1.12.10.1. Property root > groups > groups items > paut > pulse > width

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.10.2. Property root > groups > groups items > paut > pulse > voltage

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.12.10.3. Property root > groups > groups items > paut > pulse > polarity

Type enum (of string)
Required No

Must be one of:

  • “Bipolar”
  • “UnipolarPositive”
  • “UnipolarNegative”
10.1.12.11. Property root > groups > groups items > paut > gates

Type array of object
Required No
Defined in #/definitions/pautGates
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
gates items -
10.1.12.11.1. root > groups > groups items > paut > gates > gates items

Type combining
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
- name No string No - -
- geometry No enum (of string) No - -
- produceCscanData No boolean No - -
+ peakDetection No enum (of string) No - -
+ timeSelection No enum (of string) No - -
+ thresholdPolarity No enum (of string) No - -
+ synchronization No object No - -
- start No number No - -
- length No number No - -
- starts No array of number No - -
- lengths No array of number No - -
+ threshold No number No - -
All of(Requirement)
item 0
item 1
10.1.12.11.1.1. Property root > groups > groups items > paut > gates > gates items > allOf > item 0

Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1
10.1.12.11.1.1.1. Property root > groups > groups items > paut > gates > gates items > allOf > item 0 > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.11.1.1.1.1. The following properties are required
  • start
10.1.12.11.1.1.2. Property root > groups > groups items > paut > gates > gates items > allOf > item 0 > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.11.1.1.2.1. The following properties are required
  • starts
10.1.12.11.1.2. Property root > groups > groups items > paut > gates > gates items > allOf > item 1

Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1
10.1.12.11.1.2.1. Property root > groups > groups items > paut > gates > gates items > allOf > item 1 > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.11.1.2.1.1. The following properties are required
  • length
10.1.12.11.1.2.2. Property root > groups > groups items > paut > gates > gates items > allOf > item 1 > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
10.1.12.11.1.2.2.1. The following properties are required
  • lengths
10.1.12.11.1.3. Property root > groups > groups items > paut > gates > gates items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.12.11.1.4. Property root > groups > groups items > paut > gates > gates items > name

Type string
Required No
Restrictions
Min length 1
10.1.12.11.1.5. Property root > groups > groups items > paut > gates > gates items > geometry

Type enum (of string)
Required No

Must be one of:

  • “SoundPath”
  • “TrueDepth”
10.1.12.11.1.6. Property root > groups > groups items > paut > gates > gates items > produceCscanData

Type boolean
Required No
10.1.12.11.1.7. Property root > groups > groups items > paut > gates > gates items > peakDetection

Type enum (of string)
Required Yes

Must be one of:

  • “First”
  • “Last”
  • “Maximum”
10.1.12.11.1.8. Property root > groups > groups items > paut > gates > gates items > timeSelection

Type enum (of string)
Required Yes

Must be one of:

  • “Peak”
  • “Crossing”
  • “Unselected”
10.1.12.11.1.9. Property root > groups > groups items > paut > gates > gates items > thresholdPolarity

Type enum (of string)
Required Yes

Must be one of:

  • “Absolute”
  • “Positive”
  • “Negative”
10.1.12.11.1.10. Property root > groups > groups items > paut > gates > gates items > synchronization

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ mode No enum (of string) No - -
- triggeringEvent No enum (of string) No - -
- gateId No integer No - -
10.1.12.11.1.10.1. Property root > groups > groups items > paut > gates > gates items > synchronization > mode

Type enum (of string)
Required Yes

Must be one of:

  • “Pulse”
  • “GateRelative”
10.1.12.11.1.10.2. Property root > groups > groups items > paut > gates > gates items > synchronization > triggeringEvent

Type enum (of string)
Required No

Must be one of:

  • “Peak”
  • “Crossing”
10.1.12.11.1.10.3. Property root > groups > groups items > paut > gates > gates items > synchronization > gateId

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.12.11.1.11. Property root > groups > groups items > paut > gates > gates items > start

Type number
Required No
10.1.12.11.1.12. Property root > groups > groups items > paut > gates > gates items > length

Type number
Required No
Restrictions
Minimum ≥ 0.0
10.1.12.11.1.13. Property root > groups > groups items > paut > gates > gates items > starts

Type array of number
Required No
  Array restrictions
Min items N/A
Max items N/A
Items unicity False
Additional items False
Tuple validation See below
Each item of this array must be Description
starts items -
10.1.12.11.1.13.1. root > groups > groups items > paut > gates > gates items > starts > starts items

Type number
Required No
10.1.12.11.1.14. Property root > groups > groups items > paut > gates > gates items > lengths

Type array of number
Required No
  Array restrictions
Min items N/A
Max items N/A
Items unicity False
Additional items False
Tuple validation See below
Each item of this array must be Description
lengths items -
10.1.12.11.1.14.1. root > groups > groups items > paut > gates > gates items > lengths > lengths items

Type number
Required No
Restrictions
Minimum ≥ 0.0
10.1.12.11.1.15. Property root > groups > groups items > paut > gates > gates items > threshold

Type number
Required Yes
10.1.12.12. Property root > groups > groups items > paut > rectification

Type enum (of string)
Required Yes

Must be one of:

  • “None”
  • “Positive”
  • “Negative”
  • “Full”
10.1.12.13. Property root > groups > groups items > paut > digitizingFrequency

Type number
Required No
Restrictions
Minimum ≥ 0
10.1.12.14. Property root > groups > groups items > paut > ascanSynchroMode

Type enum (of string)
Required No

Must be one of:

  • “Pulse”
  • “SynchroGateRelative”
10.1.12.15. Property root > groups > groups items > paut > ascanCompressionFactor

Type integer
Required No
Restrictions
Minimum ≥ 1
10.1.12.16. Property root > groups > groups items > paut > gain

Type number
Required No
10.1.12.17. Property root > groups > groups items > paut > wedgeDelay

Type number
Required No
Restrictions
Minimum ≥ 0.0
10.1.12.18. Property root > groups > groups items > paut > ultrasoundMode

Type enum (of string)
Required No

Must be one of:

  • “TrueDepth”
  • “SoundPath”
  • “Time”
10.1.12.19. Property root > groups > groups items > paut > highAmplitude

Type number
Required No
Restrictions
Minimum ≥ 0
10.1.12.20. Property root > groups > groups items > paut > referenceAmplitude

Type number
Required No
10.1.12.21. Property root > groups > groups items > paut > referenceGain

Type number
Required No
10.1.12.22. Property root > groups > groups items > paut > digitalBandPassFilter

Type object
Required No
Additional properties [Not allowed]
Same definition as digitalBandPassFilter
10.1.12.23. Property root > groups > groups items > paut > smoothingFilter

Type number
Required No
10.1.12.24. Property root > groups > groups items > paut > averagingFactor

Type integer
Required No
Restrictions
Minimum ≥ 1
10.1.12.25. Property root > groups > groups items > paut > calibrationStates

Type array
Required No
Same definition as calibrationStates
10.1.12.26. Property root > groups > groups items > paut > softwareProcess

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
- gain No number No - -
- gates No array of object No Same as gates -
- tcg No object No Same as tcg -
- thickness No object No Same as thickness -
10.1.12.26.1. Property root > groups > groups items > paut > softwareProcess > gain

Type number
Required No
10.1.12.26.2. Property root > groups > groups items > paut > softwareProcess > gates

Type array of object
Required No
Same definition as gates
10.1.12.26.3. Property root > groups > groups items > paut > softwareProcess > tcg

Type object
Required No
Additional properties [Not allowed]
Same definition as tcg
10.1.12.26.4. Property root > groups > groups items > paut > softwareProcess > thickness

Type object
Required No
Additional properties [Not allowed]
Same definition as thickness
10.1.12.27. Property root > groups > groups items > paut > lawFile

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
- filename No string No - -
- path No string No - -
10.1.12.27.1. Property root > groups > groups items > paut > lawFile > filename

Type string
Required No
Restrictions
Min length 1
10.1.12.27.2. Property root > groups > groups items > paut > lawFile > path

Type string
Required No
Restrictions
Min length 1

10.1.13. Property root > groups > groups items > fmc


Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/fmc
Property Pattern Type Deprecated Definition Title/Description
+ dataEncodingId No integer No - -
+ probeId No integer No - -
- pulse No object No - -
- pulserFrequency No number No - -
- digitizingFrequency No number No - -
+ pulsers No array of object No - -
+ receivers No array of object No - -
+ tfmDescriptions No array of object No - -
10.1.13.1. Property root > groups > groups items > fmc > dataEncodingId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.2. Property root > groups > groups items > fmc > probeId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.3. Property root > groups > groups items > fmc > pulse

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ width No number No - -
+ voltage No number No - -
- polarity No enum (of string) No - -
- No object No - -
10.1.13.3.1. Property root > groups > groups items > fmc > pulse > width

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.13.3.2. Property root > groups > groups items > fmc > pulse > voltage

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.13.3.3. Property root > groups > groups items > fmc > pulse > polarity

Type enum (of string)
Required No

Must be one of:

  • “Bipolar”
  • “UnipolarPositive”
  • “UnipolarNegative”
10.1.13.4. Property root > groups > groups items > fmc > pulserFrequency

Type number
Required No
Restrictions
Minimum ≥ 0.0
10.1.13.5. Property root > groups > groups items > fmc > digitizingFrequency

Type number
Required No
Restrictions
Minimum ≥ 0
10.1.13.6. Property root > groups > groups items > fmc > pulsers

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
pulsers items -
10.1.13.6.1. root > groups > groups items > fmc > pulsers > pulsers items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ elementId No integer No - -
10.1.13.6.1.1. Property root > groups > groups items > fmc > pulsers > pulsers items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.6.1.2. Property root > groups > groups items > fmc > pulsers > pulsers items > elementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.7. Property root > groups > groups items > fmc > receivers

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
receivers items -
10.1.13.7.1. root > groups > groups items > fmc > receivers > receivers items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ elementId No integer No - -
10.1.13.7.1.1. Property root > groups > groups items > fmc > receivers > receivers items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.7.1.2. Property root > groups > groups items > fmc > receivers > receivers items > elementId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.8. Property root > groups > groups items > fmc > tfmDescriptions

Type array of object
Required Yes
  Array restrictions
Min items N/A
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
tfmDescriptions items -
10.1.13.8.1. root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
- name No string No - -
- signalSource No enum (of string) No - -
+ gain No number No - -
- referenceAmplitude No number No - -
- referenceGain No number No - -
+ rectangularGrid No object No - -
+ fmcPulserIds No array of integer No - -
+ fmcReceiverIds No array of integer No - -
+ pathName No string No - -
+ waveSet No object No - -
- columns No array of object No - -
- softwareProcess No object No - -
- digitalBandPassFilter No object No Same as digitalBandPassFilter -
10.1.13.8.1.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.8.1.2. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > name

Type string
Required No
Restrictions
Min length 1
10.1.13.8.1.3. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > signalSource

Type enum (of string)
Required No

Must be one of:

  • “Analytic”
  • “Real”
10.1.13.8.1.4. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > gain

Type number
Required Yes
10.1.13.8.1.5. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > referenceAmplitude

Type number
Required No
10.1.13.8.1.6. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > referenceGain

Type number
Required No
10.1.13.8.1.7. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ yImagingLimits No object No - -
+ zImagingLimits No object No - -
10.1.13.8.1.7.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > yImagingLimits

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ min No number No - -
+ max No number No - -
+ resolution No number No - -
10.1.13.8.1.7.1.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > yImagingLimits > min

Type number
Required Yes
10.1.13.8.1.7.1.2. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > yImagingLimits > max

Type number
Required Yes
10.1.13.8.1.7.1.3. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > yImagingLimits > resolution

Type number
Required Yes
10.1.13.8.1.7.2. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > zImagingLimits

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ min No number No - -
+ max No number No - -
+ resolution No number No - -
10.1.13.8.1.7.2.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > zImagingLimits > min

Type number
Required Yes
10.1.13.8.1.7.2.2. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > zImagingLimits > max

Type number
Required Yes
10.1.13.8.1.7.2.3. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > rectangularGrid > zImagingLimits > resolution

Type number
Required Yes
10.1.13.8.1.8. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > fmcPulserIds

Type array of integer
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
fmcPulserIds items -
10.1.13.8.1.8.1. root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > fmcPulserIds > fmcPulserIds items

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.13.8.1.9. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > fmcReceiverIds

Type array of integer
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
fmcReceiverIds items -
10.1.13.8.1.9.1. root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > fmcReceiverIds > fmcReceiverIds items

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.13.8.1.10. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > pathName

Type string
Required Yes
Restrictions
Min length 1
10.1.13.8.1.11. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > waveSet

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ pulsings No array of enum (of string) No - -
+ receivings No array of enum (of string) No - -
10.1.13.8.1.11.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > waveSet > pulsings

Type array of enum (of string)
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity False
Additional items False
Tuple validation See below
Each item of this array must be Description
pulsings items -
10.1.13.8.1.11.1.1. root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > waveSet > pulsings > pulsings items

Type enum (of string)
Required No

Must be one of:

  • “Longitudinal”
  • “TransversalVertical”
10.1.13.8.1.11.2. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > waveSet > receivings

Type array of enum (of string)
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity False
Additional items False
Tuple validation See below
Each item of this array must be Description
receivings items -
10.1.13.8.1.11.2.1. root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > waveSet > receivings > receivings items

Type enum (of string)
Required No

Must be one of:

  • “Longitudinal”
  • “TransversalVertical”
10.1.13.8.1.12. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns

Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
columns items -
10.1.13.8.1.12.1. root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns > columns items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ id No integer No - -
+ gainMap No object No - -
10.1.13.8.1.12.1.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns > columns items > id

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.13.8.1.12.1.2. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns > columns items > gainMap

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ points No array of object No - -
10.1.13.8.1.12.1.2.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns > columns items > gainMap > points

Type array of object
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
points items -
10.1.13.8.1.12.1.2.1.1. root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns > columns items > gainMap > points > points items

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ position No number No - -
+ gain No number No - -
10.1.13.8.1.12.1.2.1.1.1. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns > columns items > gainMap > points > points items > position

Type number
Required Yes
10.1.13.8.1.12.1.2.1.1.2. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > columns > columns items > gainMap > points > points items > gain

Type number
Required Yes
10.1.13.8.1.13. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > softwareProcess

Type object
Required No
Additional properties [Any type: allowed]
10.1.13.8.1.14. Property root > groups > groups items > fmc > tfmDescriptions > tfmDescriptions items > digitalBandPassFilter

Type object
Required No
Additional properties [Not allowed]
Same definition as digitalBandPassFilter

10.1.14. Property root > groups > groups items > dataset


Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/dataset
Property Pattern Type Deprecated Definition Title/Description
+ storageMode No enum (of string) No - Select if each beams/columns have their independent position in the dataset or if they can be store everywhere, use firing source dataset to retrieve information.
- overwriteCriteria No enum (of string) No - -
- ascan No object No In #/definitions/ascanData -
- firingSource No object No In #/definitions/firingSourceData -
- tfms No array of object No - -
10.1.14.1. Property root > groups > groups items > dataset > storageMode

Type enum (of string)
Required Yes

Description: Select if each beams/columns have their independent position in the dataset or if they can be store everywhere, use firing source dataset to retrieve information.

Must be one of:

  • “Independent”
  • “Paintbrush”
10.1.14.2. Property root > groups > groups items > dataset > overwriteCriteria

Type enum (of string)
Required No

Must be one of:

  • “Last”
  • “Min”
  • “Max”
10.1.14.3. Property root > groups > groups items > dataset > ascan

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/ascanData
Property Pattern Type Deprecated Definition Title/Description
- velocity No number No - -
- skewAngle No number No - -
- refractedAngle No number No - -
+ amplitude No object No - -
+ status No object No - -
10.1.14.3.1. Property root > groups > groups items > dataset > ascan > velocity

Type number
Required No
Restrictions
Minimum ≥ 0.0
10.1.14.3.2. Property root > groups > groups items > dataset > ascan > skewAngle

Type number
Required No
10.1.14.3.3. Property root > groups > groups items > dataset > ascan > refractedAngle

Type number
Required No
10.1.14.3.4. Property root > groups > groups items > dataset > ascan > amplitude

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ path No string No - -
+ dataSampling No object No - -
+ dataValue No object No - -
+ dimensions No array No - -
10.1.14.3.4.1. Property root > groups > groups items > dataset > ascan > amplitude > path

Type string
Required Yes
Restrictions
Min length 1
10.1.14.3.4.2. Property root > groups > groups items > dataset > ascan > amplitude > dataSampling

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ min No integer No - -
+ max No integer No - -
10.1.14.3.4.2.1. Property root > groups > groups items > dataset > ascan > amplitude > dataSampling > min

Type integer
Required Yes
10.1.14.3.4.2.2. Property root > groups > groups items > dataset > ascan > amplitude > dataSampling > max

Type integer
Required Yes
10.1.14.3.4.3. Property root > groups > groups items > dataset > ascan > amplitude > dataValue

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ unit No enum (of string) No - -
+ min No number No - -
+ max No number No - -
10.1.14.3.4.3.1. Property root > groups > groups items > dataset > ascan > amplitude > dataValue > unit

Type enum (of string)
Required Yes

Must be one of:

  • “Percent”
10.1.14.3.4.3.2. Property root > groups > groups items > dataset > ascan > amplitude > dataValue > min

Type number
Required Yes
10.1.14.3.4.3.3. Property root > groups > groups items > dataset > ascan > amplitude > dataValue > max

Type number
Required Yes
10.1.14.3.4.4. Property root > groups > groups items > dataset > ascan > amplitude > dimensions

Type array
Required Yes
  Array restrictions
Min items 3
Max items 3
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
dimensions item 0 -
dimensions item 1 -
dimensions item 2 -
10.1.14.3.4.4.1. root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
- offset No number No - -
- lastCellRewrited No integer No - -
10.1.14.3.4.4.1.1. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “UCoordinate”
10.1.14.3.4.4.1.2. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.4.4.1.3. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.4.4.1.4. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 0 > offset

Type number
Required No
10.1.14.3.4.4.1.5. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 0 > lastCellRewrited

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.14.3.4.4.2. root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1

Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1
10.1.14.3.4.4.2.1. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
+ offset No number No - -
10.1.14.3.4.4.2.1.1. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “VCoordinate”
10.1.14.3.4.4.2.1.2. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.4.4.2.1.3. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.4.4.2.1.4. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 0 > offset

Type number
Required Yes
10.1.14.3.4.4.2.2. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ beams No array No - -
10.1.14.3.4.4.2.2.1. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “Beam”
10.1.14.3.4.4.2.2.2. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams

Type array
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
beams item 0 -
10.1.14.3.4.4.2.2.2.1. root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ velocity No number No - -
+ skewAngle No number No - -
+ refractedAngle No number No - -
+ uCoordinateOffset No number No - -
+ vCoordinateOffset No number No - -
+ ultrasoundOffset No number No - -
10.1.14.3.4.4.2.2.2.1.1. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > velocity

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.14.3.4.4.2.2.2.1.2. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > skewAngle

Type number
Required Yes
10.1.14.3.4.4.2.2.2.1.3. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > refractedAngle

Type number
Required Yes
10.1.14.3.4.4.2.2.2.1.4. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > uCoordinateOffset

Type number
Required Yes
10.1.14.3.4.4.2.2.2.1.5. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > vCoordinateOffset

Type number
Required Yes
10.1.14.3.4.4.2.2.2.1.6. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > ultrasoundOffset

Type number
Required Yes
10.1.14.3.4.4.3. root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 2

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
- offset No number No - -
10.1.14.3.4.4.3.1. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 2 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “Ultrasound”
10.1.14.3.4.4.3.2. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 2 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.4.4.3.3. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 2 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.4.4.3.4. Property root > groups > groups items > dataset > ascan > amplitude > dimensions > dimensions item 2 > offset

Type number
Required No
10.1.14.3.5. Property root > groups > groups items > dataset > ascan > status

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ path No string No - -
+ dataValue No object No - -
+ dimensions No array No - -
10.1.14.3.5.1. Property root > groups > groups items > dataset > ascan > status > path

Type string
Required Yes
Restrictions
Min length 1
10.1.14.3.5.2. Property root > groups > groups items > dataset > ascan > status > dataValue

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ unit No enum (of string) No - -
- hasData No integer No - -
- noSynchro No integer No - -
- saturated No integer No - -
10.1.14.3.5.2.1. Property root > groups > groups items > dataset > ascan > status > dataValue > unit

Type enum (of string)
Required Yes

Must be one of:

  • “Bitfield”
10.1.14.3.5.2.2. Property root > groups > groups items > dataset > ascan > status > dataValue > hasData

Type integer
Required No
Restrictions
Minimum ≥ 1
10.1.14.3.5.2.3. Property root > groups > groups items > dataset > ascan > status > dataValue > noSynchro

Type integer
Required No
Restrictions
Minimum ≥ 1
10.1.14.3.5.2.4. Property root > groups > groups items > dataset > ascan > status > dataValue > saturated

Type integer
Required No
Restrictions
Minimum ≥ 1
10.1.14.3.5.3. Property root > groups > groups items > dataset > ascan > status > dimensions

Type array
Required Yes
  Array restrictions
Min items 2
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
dimensions item 0 -
dimensions item 1 -
10.1.14.3.5.3.1. root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
- offset No number No - -
- lastCellRewrited No integer No - -
10.1.14.3.5.3.1.1. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “UCoordinate”
10.1.14.3.5.3.1.2. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.5.3.1.3. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.5.3.1.4. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 0 > offset

Type number
Required No
10.1.14.3.5.3.1.5. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 0 > lastCellRewrited

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.14.3.5.3.2. root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1

Type combining
Required No
Additional properties [Any type: allowed]
One of(Option)
item 0
item 1
10.1.14.3.5.3.2.1. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 0

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
+ offset No number No - -
10.1.14.3.5.3.2.1.1. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “VCoordinate”
10.1.14.3.5.3.2.1.2. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.5.3.2.1.3. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.3.5.3.2.1.4. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 0 > offset

Type number
Required Yes
10.1.14.3.5.3.2.2. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ beams No array No - -
10.1.14.3.5.3.2.2.1. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “Beam”
10.1.14.3.5.3.2.2.2. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams

Type array
Required Yes
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
beams item 0 -
10.1.14.3.5.3.2.2.2.1. root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ velocity No number No - -
+ skewAngle No number No - -
+ refractedAngle No number No - -
+ uCoordinateOffset No number No - -
+ vCoordinateOffset No number No - -
+ ultrasoundOffset No number No - -
10.1.14.3.5.3.2.2.2.1.1. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > velocity

Type number
Required Yes
Restrictions
Minimum ≥ 0.0
10.1.14.3.5.3.2.2.2.1.2. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > skewAngle

Type number
Required Yes
10.1.14.3.5.3.2.2.2.1.3. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > refractedAngle

Type number
Required Yes
10.1.14.3.5.3.2.2.2.1.4. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > uCoordinateOffset

Type number
Required Yes
10.1.14.3.5.3.2.2.2.1.5. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > vCoordinateOffset

Type number
Required Yes
10.1.14.3.5.3.2.2.2.1.6. Property root > groups > groups items > dataset > ascan > status > dimensions > dimensions item 1 > oneOf > item 1 > beams > beams item 0 > ultrasoundOffset

Type number
Required Yes
10.1.14.4. Property root > groups > groups items > dataset > firingSource

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/firingSourceData
Property Pattern Type Deprecated Definition Title/Description
+ path No string No - -
+ dataValue No object No - -
+ dimensions No array No - -
10.1.14.4.1. Property root > groups > groups items > dataset > firingSource > path

Type string
Required Yes
Restrictions
Min length 1
10.1.14.4.2. Property root > groups > groups items > dataset > firingSource > dataValue

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ min No integer No - -
+ max No integer No - -
+ unit No enum (of string) No - -
10.1.14.4.2.1. Property root > groups > groups items > dataset > firingSource > dataValue > min

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.4.2.2. Property root > groups > groups items > dataset > firingSource > dataValue > max

Type integer
Required Yes
10.1.14.4.2.3. Property root > groups > groups items > dataset > firingSource > dataValue > unit

Type enum (of string)
Required Yes

Must be one of:

  • “BeamId”
  • “ColumnId”
10.1.14.4.3. Property root > groups > groups items > dataset > firingSource > dimensions

Type array
Required Yes
  Array restrictions
Min items 2
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
dimensions item 0 -
dimensions item 1 -
10.1.14.4.3.1. root > groups > groups items > dataset > firingSource > dimensions > dimensions item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
+ offset No number No - -
- lastCellRewrited No integer No - -
10.1.14.4.3.1.1. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “UCoordinate”
10.1.14.4.3.1.2. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.4.3.1.3. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.4.3.1.4. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 0 > offset

Type number
Required Yes
10.1.14.4.3.1.5. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 0 > lastCellRewrited

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.14.4.3.2. root > groups > groups items > dataset > firingSource > dimensions > dimensions item 1

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
+ offset No number No - -
10.1.14.4.3.2.1. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 1 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “VCoordinate”
10.1.14.4.3.2.2. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 1 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.4.3.2.3. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 1 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.4.3.2.4. Property root > groups > groups items > dataset > firingSource > dimensions > dimensions item 1 > offset

Type number
Required Yes
10.1.14.5. Property root > groups > groups items > dataset > tfms

Type array of object
Required No
  Array restrictions
Min items 1
Max items N/A
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
tfmData -
10.1.14.5.1. root > groups > groups items > dataset > tfms > tfmData

Type object
Required No
Additional properties [Not allowed]
Defined in #/definitions/tfmData
Property Pattern Type Deprecated Definition Title/Description
+ tfmDescriptionId No integer No - -
+ amplitude No object No - -
+ status No object No - -
10.1.14.5.1.1. Property root > groups > groups items > dataset > tfms > tfms items > tfmDescriptionId

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.2. Property root > groups > groups items > dataset > tfms > tfms items > amplitude

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ path No string No - -
+ dataSampling No object No - -
+ dataValue No object No - -
+ dimensions No array No - -
10.1.14.5.1.2.1. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > path

Type string
Required Yes
Restrictions
Min length 1
10.1.14.5.1.2.2. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dataSampling

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ min No integer No - -
+ max No integer No - -
10.1.14.5.1.2.2.1. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dataSampling > min

Type integer
Required Yes
10.1.14.5.1.2.2.2. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dataSampling > max

Type integer
Required Yes
10.1.14.5.1.2.3. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dataValue

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ unit No enum (of string) No - -
+ min No number No - -
+ max No number No - -
10.1.14.5.1.2.3.1. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dataValue > unit

Type enum (of string)
Required Yes

Must be one of:

  • “Percent”
  • “Coherence”
10.1.14.5.1.2.3.2. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dataValue > min

Type number
Required Yes
10.1.14.5.1.2.3.3. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dataValue > max

Type number
Required Yes
10.1.14.5.1.2.4. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions

Type array
Required Yes
  Array restrictions
Min items 3
Max items 3
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
dimensions item 0 -
dimensions item 1 -
dimensions item 2 -
10.1.14.5.1.2.4.1. root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
- offset No number No - -
- lastCellRewrited No integer No - -
10.1.14.5.1.2.4.1.1. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “UCoordinate”
10.1.14.5.1.2.4.1.2. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.2.4.1.3. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.2.4.1.4. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 0 > offset

Type number
Required No
10.1.14.5.1.2.4.1.5. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 0 > lastCellRewrited

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.14.5.1.2.4.2. root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 1

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
+ offset No number No - -
10.1.14.5.1.2.4.2.1. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 1 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “VCoordinate”
10.1.14.5.1.2.4.2.2. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 1 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.2.4.2.3. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 1 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.2.4.2.4. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 1 > offset

Type number
Required Yes
10.1.14.5.1.2.4.3. root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 2

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
- offset No number No - -
10.1.14.5.1.2.4.3.1. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 2 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “WCoordinate”
10.1.14.5.1.2.4.3.2. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 2 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.2.4.3.3. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 2 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.2.4.3.4. Property root > groups > groups items > dataset > tfms > tfms items > amplitude > dimensions > dimensions item 2 > offset

Type number
Required No
10.1.14.5.1.3. Property root > groups > groups items > dataset > tfms > tfms items > status

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ path No string No - -
+ dataValue No object No - -
+ dimensions No array No - -
10.1.14.5.1.3.1. Property root > groups > groups items > dataset > tfms > tfms items > status > path

Type string
Required Yes
Restrictions
Min length 1
10.1.14.5.1.3.2. Property root > groups > groups items > dataset > tfms > tfms items > status > dataValue

Type object
Required Yes
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ unit No enum (of string) No - -
- hasData No integer No - -
- saturated No integer No - -
10.1.14.5.1.3.2.1. Property root > groups > groups items > dataset > tfms > tfms items > status > dataValue > unit

Type enum (of string)
Required Yes

Must be one of:

  • “Bitfield”
10.1.14.5.1.3.2.2. Property root > groups > groups items > dataset > tfms > tfms items > status > dataValue > hasData

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.14.5.1.3.2.3. Property root > groups > groups items > dataset > tfms > tfms items > status > dataValue > saturated

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.14.5.1.3.3. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions

Type array
Required Yes
  Array restrictions
Min items 2
Max items 2
Items unicity True
Additional items False
Tuple validation See below
Each item of this array must be Description
dimensions item 0 -
dimensions item 1 -
10.1.14.5.1.3.3.1. root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 0

Type object
Required No
Additional properties [Not allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
- offset No number No - -
- lastCellRewrited No integer No - -
10.1.14.5.1.3.3.1.1. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 0 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “UCoordinate”
10.1.14.5.1.3.3.1.2. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 0 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.3.3.1.3. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 0 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.3.3.1.4. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 0 > offset

Type number
Required No
10.1.14.5.1.3.3.1.5. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 0 > lastCellRewrited

Type integer
Required No
Restrictions
Minimum ≥ 0
10.1.14.5.1.3.3.2. root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 1

Type object
Required No
Additional properties [Any type: allowed]
Property Pattern Type Deprecated Definition Title/Description
+ axis No enum (of string) No - -
+ quantity No integer No - -
+ resolution No number No - -
+ offset No number No - -
10.1.14.5.1.3.3.2.1. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 1 > axis

Type enum (of string)
Required Yes

Must be one of:

  • “VCoordinate”
10.1.14.5.1.3.3.2.2. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 1 > quantity

Type integer
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.3.3.2.3. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 1 > resolution

Type number
Required Yes
Restrictions
Minimum ≥ 0
10.1.14.5.1.3.3.2.4. Property root > groups > groups items > dataset > tfms > tfms items > status > dimensions > dimensions item 1 > offset

Type number
Required Yes

Generated using json-schema-for-humans on 2023-07-05 at 15:22:11 -0400

Back to top

©2023 Evident Industrial. All rights reserved.
Site last generated: Jul 10, 2023

Company logo
